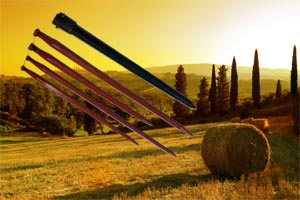

Conus I forged tines for silage and manure fork

      Conus I forged tines for silage and manure fork

                                                                                                                                                       ---Tine manufacturer for agricultural material handling equipment

  Conus I Straight Tines

 Item NO.

 Nut

 Length ( in )

 Weight ( lbs )

 Diameter

 Max. Load @ 24"

  Max. Load @ 32"

 KY33501 with point

 M20 * 1.5

 24"

 5.7

 1 3/8"

 2000 lbs

 n/a

 KY33502 with point

 M20 * 1.5

 27"

 7.7

 1 3/8"

  2000 lbs

  n/a

 KY33503 with point

 M20 * 1.5

 32"

 9

 1 3/8"

  2000 lbs

  n/a

 KY33504 with point

 M20 * 1.5

 39"

 10.6

 1 3/8"

  2000 lbs

1500 lbs

 KY33505 with point

 M20 * 1.5

 43"

 10.6

 1 3/8"

  2000 lbs

 1500 lbs

 KY33506 with point

 M20 * 1.5

 49"

 11

 1 3/8"

  2000 lbs

 1500 lbs

 KY33507 with point

 M20 * 1.5

 55"

 11.5

 1 3/8"

  2000 lbs

 1500 lbs



Conus I Curved Tines

 Item No.

 Nut

 Length ( in )

  Weight ( lbs )

  Diameter

 Max. Load @ 24"

  Max. Load @ 32"

 KY33511 with point

  M20 * 1.5

 24"

 5.7

 1 3/8"

 2000 lbs

   n/a

 KY33512 with point

  M20 * 1.5

 27"

 7.7

 1 3/8"

 2000 lbs

   n/a

 KY33513 with point

  M20 * 1.5

 32"

 9

 1 3/8"

 2000 lbs

   n/a



Conus I Cranked Tines

 Item No.

 Nut

 Length ( in )

  Weight ( lbs )

  Diameter

 Max. Load @ 24"

  Max. Load @ 32"

 KY33514 with point

  M24 * 2

 32"

9.3

 1 3/8"

 2000 lbs

   n/a

 KY33516 with point

  M24 * 2

 36"

10.4

 1 3/8"

 2000 lbs

   n/a



Specifications:
1) Material: High Strength Spring Steel
2) Type : Straight, curved, and cranked tines
3) Hardness : 43-50 HRC
4) Roll forged, heat-treated, hardened and tempered
