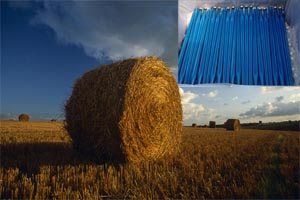

Conus II forged tines for silage and manure fork



                         Conus II forged tines for silage and manure fork

                                     ----Tine manufacturer for agricultural material handling

Conus II Straight Tines

Item NO.

 Nut

 Length ( in )

 Weight ( lbs )

 Diameter

 Max. Load @ 24"

  Max. Load @ 32"

 KY41001 with point

 M30 * 2

 32"

 13.2

 1 3/4"

 3600 lbs

 n/a

 KY41002 with point

 M30 * 2

 39"

14.8

 1 3/4"

  3600 lbs

 2800 lbs

 KY41003 with point

M30 * 2

 43"

 15.9

 1 3/4"

  3600 lbs

  2800 lbs

 KY41004 with point

 M30 * 2

 49"

 18.1

 1 3/4"

  3600 lbs

2800 lbs

 KY41005 with point

 M30 * 2

 55"

18.7

 1 3/4"

  3600 lbs

 2800 lbs

 Round Bale Spear 41006

 M30 * 2

 49"

 n/a

 1 5/8"

  3600 lbs

 2800 lbs

 Round Bale Spear 41007

M30 * 2

 49"

 n/a

 2"

  3800 lbs

 3000 lbs

Specifications:
1) Material: High Strength Spring Steel
2) Type : Straight, curved, and cranked tines
3) Hardness : 43-50 HRC
4) Roll forged, heat-treated, hardened and tempered
